WGS-L200 Slab/ Plate Steel Width Measuring System Private individual

Overview

The WGS-L200 Laser Slab/ Plate Steel Width Measuring System adopts the principle of double laser triangulation reflection to process the online measurement of the steel plate on the roller bed, and combines the high-speed digital signal processing technology and programming software to process the signal correspondingly, and displays the relevant data and measurement curve, so as to realize the accurate control for steelmaking process during the production.

The WGS-L200 Laser Slab/Plate Steel Width Measuring System is mainly composed of computing processing software and hardware systems such as testing equipment, computing equipment. The hardware system consists of 2 sets of laser triangulation rangefinding system, on-site signal acquisition and transmission system, operation unit, host analysis and control alarm system, etc. The software of WGS-L200 laser slab/ plate steel width measuring system mainly includes data acquisition and analysis, alarm software and data visualization operation software in the host system. The data analysis system analyzes and converts the data transmitted by the signal acquisition and analysis system into the visual data of the main control room, and completes the width measurement monitoring work in the slab production operation through the set alarm threshold.

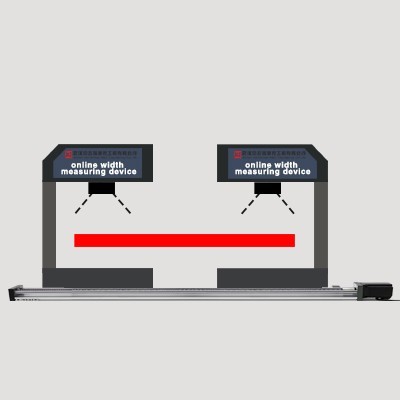

The measuring principle of the system

The WGS-L200 Laser Slab/Plate Steel Width Measuring System is mainly composed of computing processing software and hardware systems such as testing equipment, computing equipment. The hardware system consists of 2 sets of laser triangulation rangefinding system, on-site signal acquisition and transmission system, operation unit, host analysis and control alarm system, etc.

The software of WGS-L200 laser slab/ plate steel width measuring system mainly includes data acquisition and analysis, alarm software and data visualization operation software in the host system. The data analysis system analyzes and converts the data transmitted by the signal acquisition and analysis system into the visual data of the main control room, and completes the width measurement monitoring work in the slab production operation through the set alarm threshold.

The features of the system

1. Using the principle of laser triangulation reflection, it is very suitable for dynamic measurement, and the dynamic measurement accuracy is high.

2. Non-contact type, namely, the laser rangefinding sensor is installed on the upper and lower sides of the strip conveying guide groove, and the width measurement device is not in direct contact with the strip.

3. Continuous and fast sampling measurement, the sampling frequency is 300Hz-2000Hz. The measurement frequency can be set freely to realize high-speed width detection.

4. It can effectively identify and compensate the beating, inclination, side deflection and profile of the tested plate;

5. Excellent mathematical model realizes accurate width detection of the bad profile;

6. The software interface is good, powerful, easy to operate and maintenance-free;

7. The software has self-diagnosis function;

8. Full digital detection, automatic calibration system;

9. High measurement accuracy and fast response;

10. Using optical fiber signal transmission;

11. Quality control alarm;

The technical parameters

Measuring distance: 0.5-0.8m (according to the on-site environment)

Resolution: ±0.1mm

Repeatability: 0.2mm

Measurement output frequency: 100-3KHz

Laser class: 2 (IEC60825-1:2014)

Protection class: IP65

Communication method: TCP/IP communication
